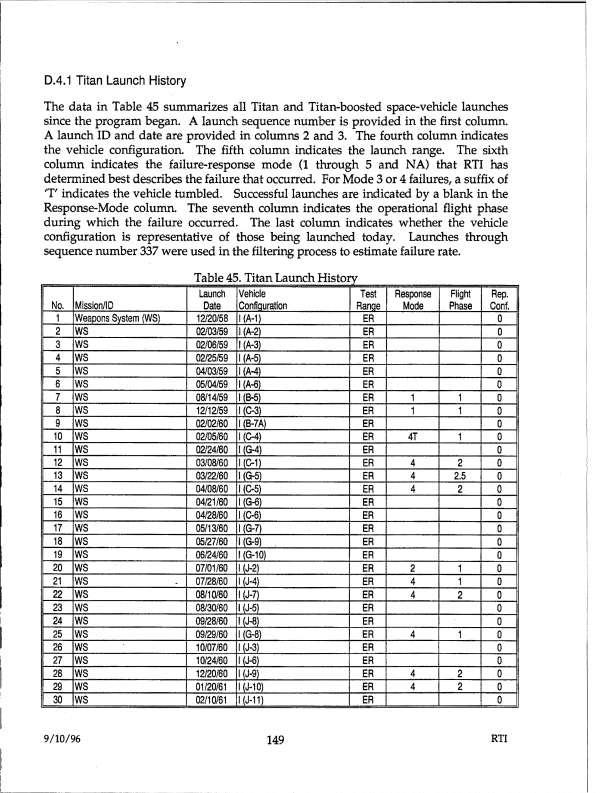

D.4.1 Titan Launch History The data in Table 45 summarizes all Titan and Titan-boosted space-vehicle launches since the program began. A launch sequence number is provided in the first column. A launch ID and date are provided in columns 2 and 3. The fourth column indicates the vehicle configuration. The fifth column indicates the launch range. The sixth column indicates the failure-response mode (1 through 5 and NA) that RTI has determined best describes the failure that occurred. For Mode 3 or 4 failures, a suffix of 'T' indicates the vehicle tumbled. Successful launches are indicated by a blank in the Response-Mode column. The seventh column indicates the operational flight phase during which the failure occurred. The last column indicates whether the vehicle configuration is representative of those being launched today. Launches through sequence number 337 were used in the filtering process to estimate failure rate. Table 45. Titan Launch Historv Launch Vehicle Test Response Flight Rep. No. Mission/ID Date Confiauratlon Ranae Mode Phase Conf. 1 Weapons System (WSl 12/20/58 I (A-1) ER 0 2 ws 02/03/59 I (A-2) ER 0 3 ws 02/06/59 I (A-3) ER 0 4 ws 02/25/59 I (A-5) ER 0 5 ws 04/03/59 I (A-4) ER 0 6 ws 05/04/59 I (A-6) ER 0 7 ws 08/14/59 I (B-5) ER 1 1 0 8 ws 12/12/59 I (C-3) ER 1 1 0 9 ws 02/02/60 I (B-7Al ER 0 10 ws 02/05/60 I (C-4) ER 4T 1 0 11 ws 02/24/60 I (G-4) ER 0 12 ws 03/08/60 I (C-11 ER 4 2 0 13 ws 03/22/60 I (G-5) ER 4 2.5 0 14 ws 04/08/60 I (C-51 ER 4 2 0 15 ws 04/21/60 I (G-6) ER 0 16 ws 04/28/60 I (C-6) ER 0 17 ws 05/13/60 I (G-7) ER 0 18 ws 05/27/60 I (G-91 ER 0 19 ws 06/24/60 I (G-10} ER 0 20 ws 07/01/60 I (J-2) ER 2 1 0 21 ws . 07/28/60 I {J-4) ER 4 1 0 22 ws 08/10/60 I {J-7) ER 4 2 0 23 ws 08/30/60 I (J-5) ER 0 24 ws 09/28/60 I (J-8) ER 0 25 ws 09/29/60 I (G-8) ER 4 1 0 26 ws 10/07/60 I (J-3) ER 0 27 ws 10/24/60 I (J-6) ER 0 28 ws 12/20/60 I {J-9) ER 4 2 0 29 ws 01/20/61 I (J-10) ER 4 2 0 30 ws 02/10/61 I (J-11) ER 0 9/10/96 149 RTI I I L ...
Vision Description (EN)
The page contains a section titled 'D.4.1 Titan Launch History' followed by a descriptive paragraph and a table labeled 'Table 45. Titan Launch History'. The table lists 30 launch entries with columns for sequence number, mission ID, date, vehicle configuration, test range, response mode, flight phase, and representative configuration. There are no visible redactions on this page.
Descrição Vision (PT-BR)
A página contém uma seção intitulada 'D.4.1 Titan Launch History', seguida por um parágrafo descritivo e uma tabela rotulada 'Table 45. Titan Launch History'. A tabela lista 30 entradas de lançamento com colunas para número de sequência, ID da missão, data, configuração do veículo, campo de teste, modo de resposta, fase de voo e configuração representativa. Não há rasuras ou marcações de censura visíveis nesta página.
